FCC1

Adjustable limit switch for ASSL2 actuators

Availability: 2 in stock
€23.00
PRICE for: 1pc - See table for quantities exceeding:
Quantity 4+ 11+
Price €21.00 €19.00

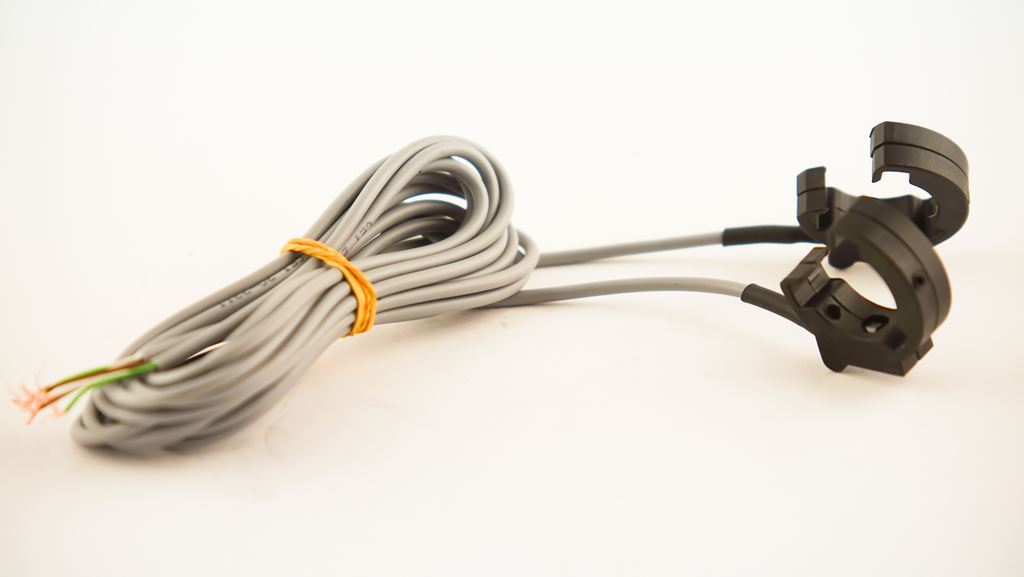

Magnetic limit switches (two items), externally mountable to the following types of actuator:



Technical features

- Power supply: 10 / 24V DC
- Protection against polarity reversal
- Cable length 1.8 m
- Working temperature -10 .... + 70 ° C
- Red led for engagement
- Output: NPN, PNP (optionally) max 100 mA
- Locking: Allen screw

Connections:

Brown: Power supply + 10/24 Vdc
White: - (GND)
Green: NPN output
Yellow: signal selection (do not connect to get PNP output signal)
IMPORTANT: The FCC1 limit switches must be mounted exactly as shown in the attached drawing:
Schema
