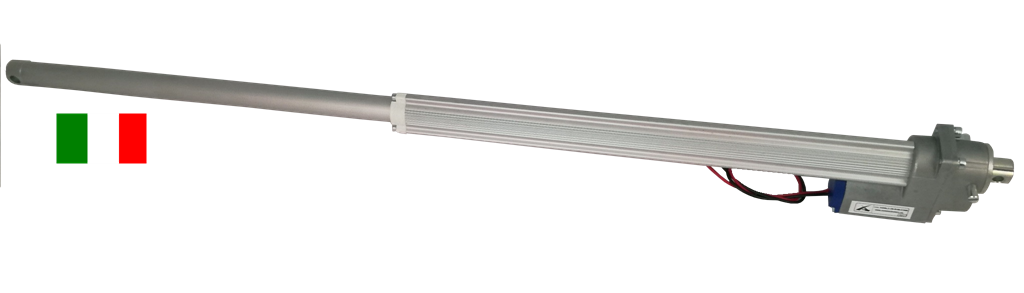

Attuatore lineare ASSL2-20-R12-C300

Telescopic actuator, 12/24Vdc, 1.4/2.2A, 300mm stroke, 20/40 Kg. thrust

Availability: 1 in stock
Delivery date: 24-48 hours
PRICE for: 1pc - See table for quantities exceeding:
Quantity 4+ 11+
Price €86.00 €81.00

Description: telescopic linear actuator 12/24V, 300mm stroke

High quality linear actuator, made in Italy.

Perfect for industrial application or general ones, such as automatic dispensers, servosystems, door openers etc., in brief everywhere a linear movement is needed.

Available for power supplies of 12Vdc or 24Vdc, with different characteristics.

Also suitable for automotive applications.

On request, it is possible to have different strokes and various reduction ratios (see technical details).

This actuator can be equipped with the FCC1 adjustable limit switch.

Technical Data:

- Power supply: 12/24Vdc

- Nominal current: 1.4A (@12V), 2.2A (@24V)

- Maximum stroke: 300mm

- Maximum load: 20Kg (@12V), 40Kg (@24V)

- Trapezoidal screw (arm) fixing: eyelet diam. 8.1mm

Datasheet ASSL2 - Actuator characteristics table

Datasheet ASSL2 - Dimensional layout
