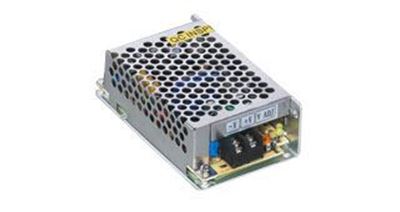

Overview ● Single output:15W ● Input Voltage range:85~264VAC ● Size:100×58×32mm

Availability: 100 in stock
Delivery date: 20 giorni
Call for pricing
General Specitication TOP
Specification Model
B S-15-5 B S-15-12 B S-15-15 B S-15-24
DC output 5V  3A 12V  1.3A 15V   1A 24V   0.7A
Wave and noise 60mVP-P 80mVP-P 100mVP-P 100mVP-P
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 68% 71% 72% 75%
Adiustable range for DC voltage ±10% ±10% ±10% ±10%
AC input voltage range 85~264VAC    47-63Hz,120~370VDC
AC Inrush current Cold-start current        30A/230V
OverLoad protection 105%~135%   hiccup mode ,auto-recovery
Over-voltage protection
Setup,rise,hold up time 200ms, 50ms, 20ms
Withstand voltage I/P-O/P:1.5KvAC  I/P-FG:1.5KvAC  O/P-FG:0.5Kv AC 1 minute
Isolation resistance I/P-O/P  I/P-FG  O/P-FG
Working temperature ~-10℃~+50℃
Safety standards Design refer to  GB4943,UL60950,EN60950
EMC standards Design refer to GB9254,EN55022 classB
Weight 0.15kg
Overall Dimenseion(mm) TOP
